| Product Category: | TV Ceiling Mount |
| Rank: | Standard |
| Material: | Steel |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 180x480x2520mm |
| Fit Screen Size: | Suitable For Most 32" ~ 75" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200x200,300x300,400x200, 400x400mm |
| Max. VESA: | 400x400mm |
| Weight Capacity: | 50kg (110lbs) |
| Strength Tested: | 3 Times Approved |

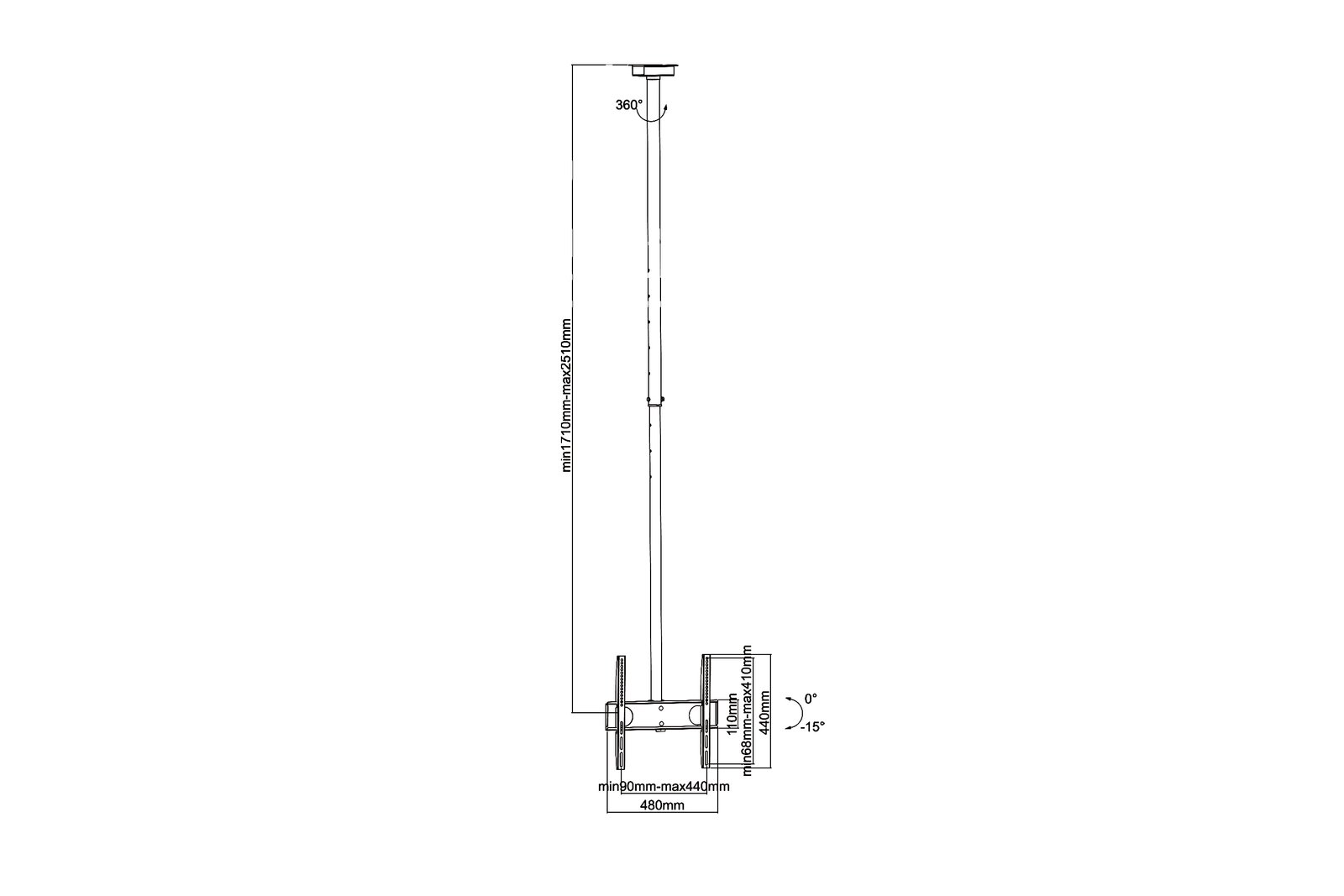

| Profile: | 1710-2510 mm (1.7Mtr to 2.5 mtr) |
| Tilt Range: | +0 ~ -15° |
| Installation: | Ceiling Mounted |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Rotation: | 360 Degree |

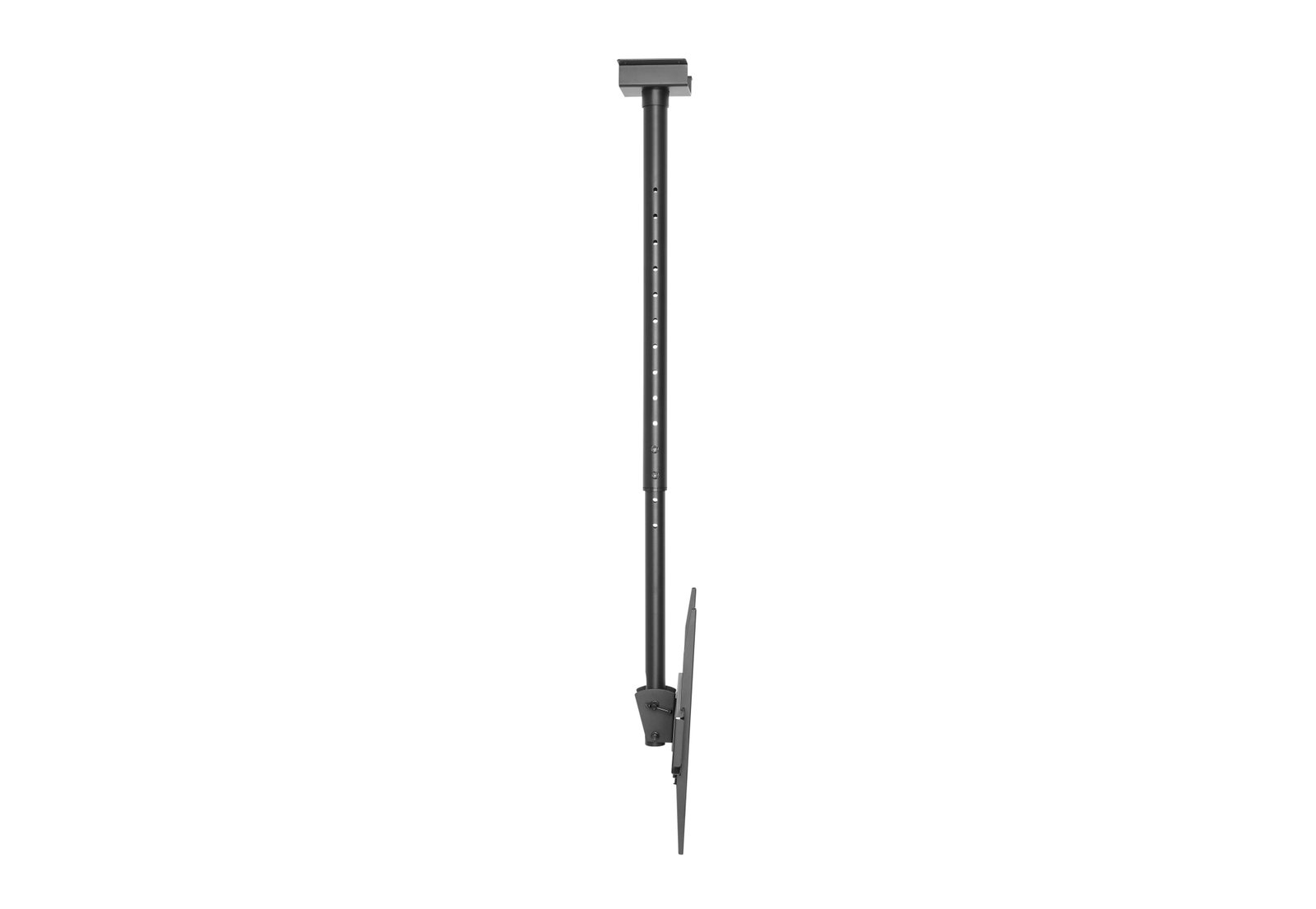

The SkillTechs’s popular model SH 40C is a ceiling mount designed to offer the ultimate in versatility and universal compatibility. Tilting ceiling plate for flat and bevel roof/ceiling. It is the perfect solution for retail and commercial displays, offering 15°tilt down. It combines advanced cable management features and ceiling mount covers to ensure an elegant and tidy look. Max. VESA 800x400 hole pattern.
Free-Tilting Design: for multiple monitor viewing angles
Cable Management: elegantly hides any cables that are attached to displays
360° Rotation Around the Pole: provides optimal viewing
Telescoping Height Adjustment: for the optimal viewing height
Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
Fixed TV Wall Mount , TV Ceiling Mount , Rotate TV Wall Mount , Flat Ceiling TV Mount , Height Adjustable TV Mount
| Quantity per Carton | 2 units |
| Gross Weight | 18.1 |
| Net Weight | 13 |
| CBM per Carton | 0.058 |
| Carton Dimension | 140.8X22.8X18 |
