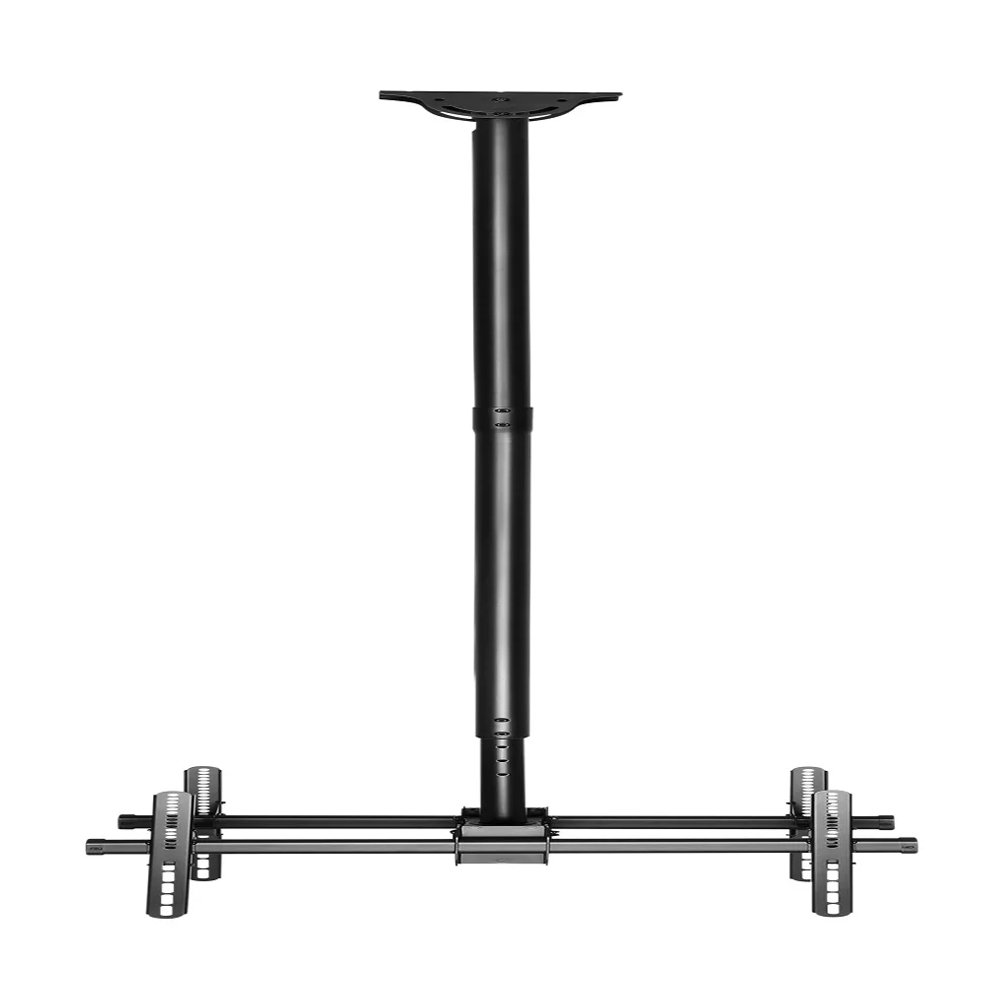

SH 034DC Back-To-Back Flat Panel TV Ceiling Mount

Product Category:	TV Ceiling Mount
Rank:	Standard
Material:	Steel
Surface Finish:	Powder Coating
Color:	Matte Black

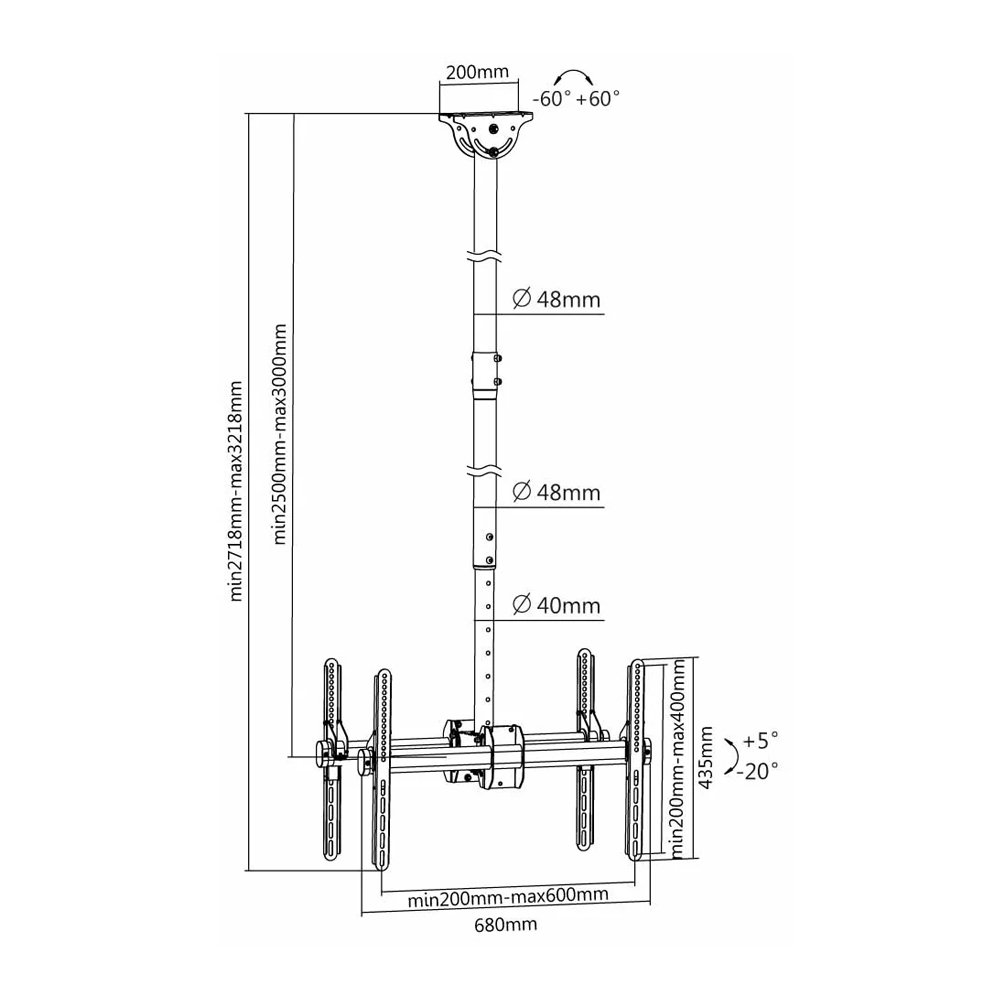

Dimensions:	680x435x3218mm (26.8"x17.1"x126.7")
Fit Screen Size:	Suitable For Most 37" ~ 75" Screen
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400
Max. VESA:	605x405mm
Weight Capacity:	90kg
Strength Tested:	4 Times Approved
Profile:	2500~3000mm (98.4"~118.1")
Tilt Range:	+0° ~ -25°
Swivel Range:	+180° ~ -180°
Screen Level:	+3° ~ -3°
Screen Freely Tilting:	No
Installation:	Ceiling Mounted
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Rotation	360 Degree
Bubble Level:	No

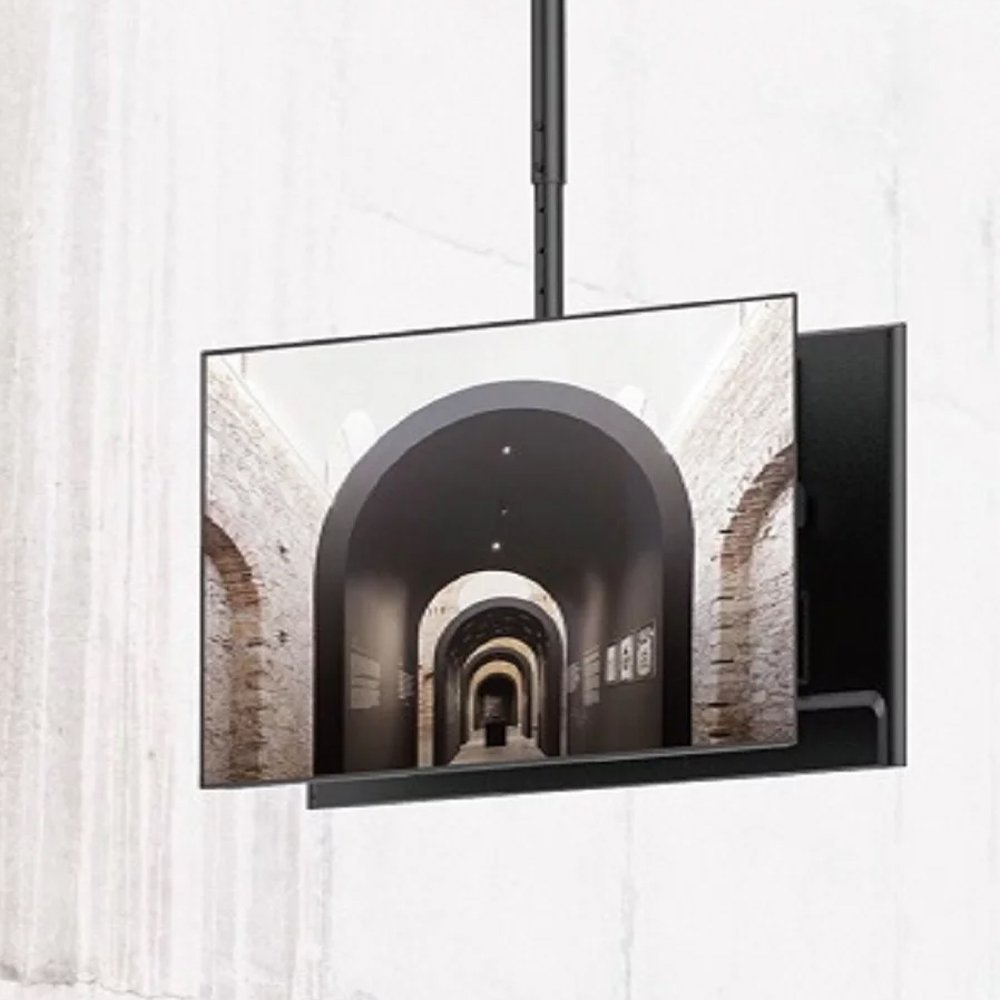

The SKILL TECH's SH 034DC is a flexible ceiling mount designed to provide extra possibilities by allowing two screens to be placed back-to-back. Tilting ceiling plate for flat and sloping ceiling application. It allows displays to tilt and swivel around the pole without tools. The universal mounting pattern fits virtually any 37" – 75" flat-panel TV. Each mount holds up to 90kg / 99lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organized.

Telescoping Height Adjustment: for the optimal viewing height.

Adjustable Ceiling Plate: for mounting in the flat or sloping ceiling

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare.

Built-In Level Adjustment: ensures perfect positioning.

Cable Management: keep everything organized.
